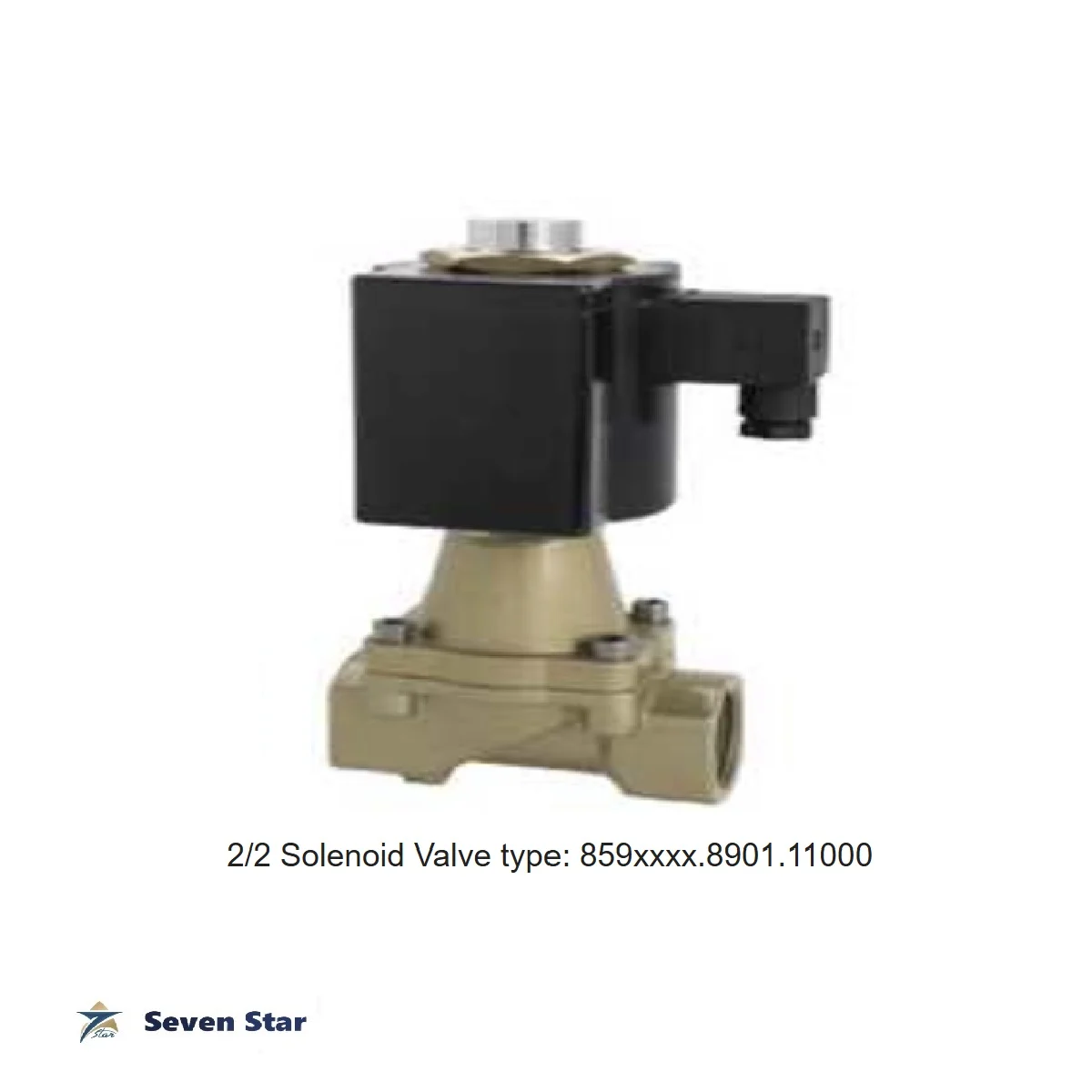

2/2 Solenoid Valve type: 859xxxx.8901.11000,
NC ATEX, DN25, connection: 1NPT
Working pressure: 0 – 40 bar
Fluid temperature: -40°C – +90°C
Sealing: NBR-K
max. ambient temperature +40°C
Ex II 2G Ex de IIC T5 Gb Ex II 2 GD T130°C resp.
T95°C Db Ex-certificate ….PTB 03 ATEX 1040 IP 65,
gland M20 x 1.5 mm for cable 8-11.5mm
position sensor open/closed: IP 67,
visual indicator: LED
connection: 10 m cable 2×0.14mm² ;
Type: Namur DIN EN 60947-5-6 Ex II 2G Ex ia
