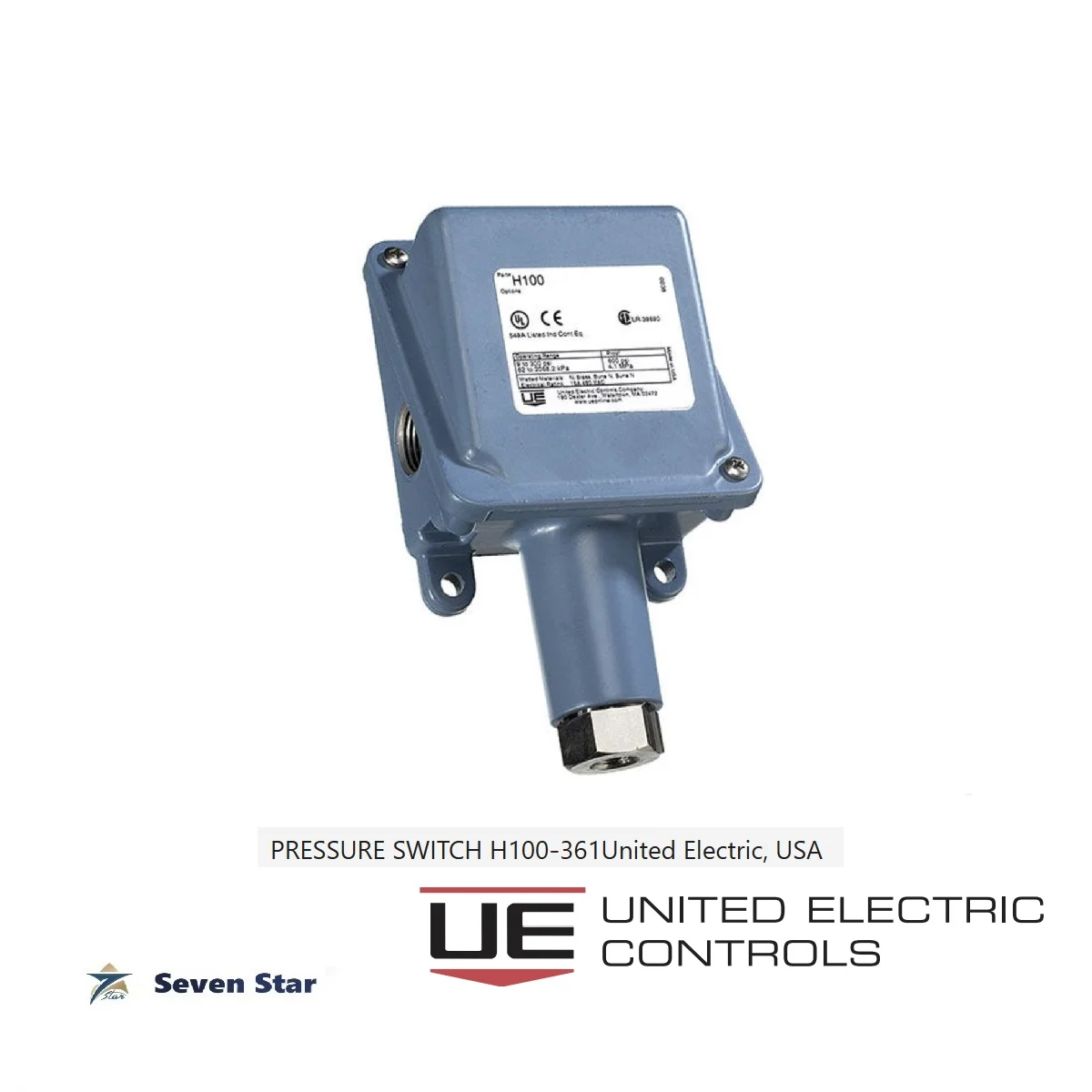

PRESSURE SWITCH

Manufacturer & Country of Origin: United Electric, USA

Model: H100-361

Adjustable set point range: 20 to 300 psi

Dead band: 1 to 7 psi

Max. over range pressure: 300 psi

Proof pressure: 800 psi

Wetted Parts: 316L SS

Pressure connection: 1/4″NPT (Female)

Ambient Temperature (T_amb): -40 to 71 °C

Enclosure classification: Certified to enclosure type 4X

Enclosure Type: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws

Electrical rating: 15A @ 125/250/480 VAC Resistive; 2A Res. & 1A Inductive @ 24-30 VDC; 0.5A Res. & 0.03A Inductive @ 125 VDC
