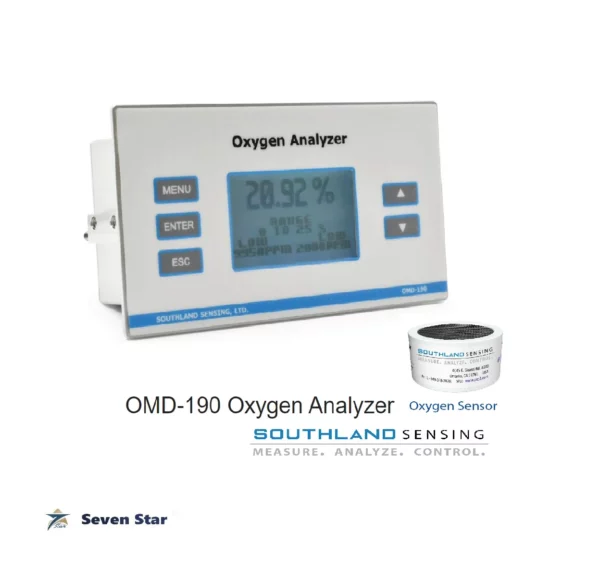

OMD-190 Oxygen Analyzer Online Oxygen Analyzer, Panel Mount Package, Remote Sensor Housing

Precision Electrochemical Sensor Technology
Intuitive User-Friendly Interface
Trace, Percent, or Purity Analysis Ranges
Auto-Ranging or Manual Range Mode
Two Adjustable Alarm Contacts w/ delay mode
Panel Mount Design, Direct Fit Replacement
Measure Oxygen from 0.01ppm to 100%

Specifications:
Accuracy: +/- 1% Full Scale Range*
Display: LCD with Backlight
Dimensions (Front): 7.00”W x 3.75”H x 2.00” D
Panel Cutout Dimensions: 6.00”W x 2.85”H
Enclosure: Anodized Aluminum
Classification: General Purpose
Temperature Rating: 0 – 50 deg C
Temperature Compensation: Integral
Alarms: 2 Adjustable w/ delay mode
Power: 10 – 28 VDC or 100 – 240 VAC
Output (Analog): 4 – 20mA (Isolated)
Communication: Bi-Directional MODBUS RS485 ASCII
Range ID: 1 – 5 VDC (Optional 4 -20mA)
Response time: T90 in 7 Seconds
Sensor: Configurable
Sensor Type: Precision Electrochemical
Calibration: Periodically
Temperature Compensation: Integral
Flow Sensitivity: 0.5 – 5 SCFH
Pressure: 0.1 – 50 PSIG
Warranty: 12 Months Sensor
12 Months Electronics
*Accuracy at constant conditions
