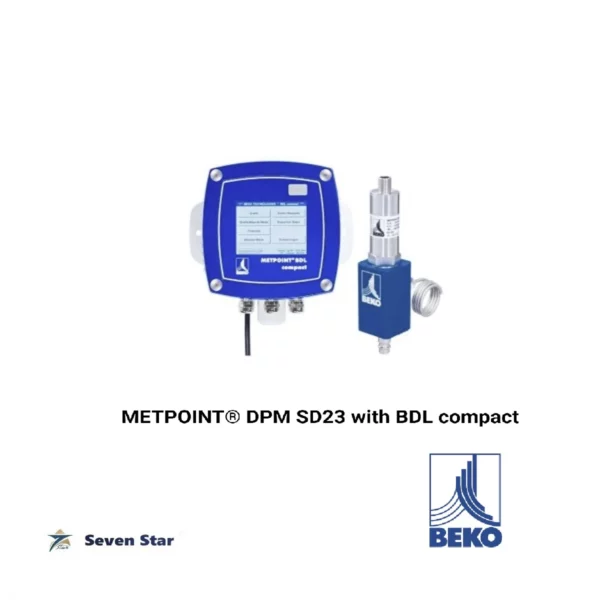

METPOINT® DPM SD23 with BDL compact
4031322
Technical Data of BDL compact data logger
Colour display: 3.5″ touch screen, TFT transmissive,
Dimensions (mm): 180 x 166 x 115 (width / height /
depth),
Operating temperature: 0 … +50 °C,
Power supply: 100 … 240 VAC / 50 … 60 Hz / max 10
VA,
Weight: 2.7 kg (Per Item)
METPOINT DPM Pressure Dew Point
transmitter SD23, Measuring range: -60 … +30°Ctd ,
Output signal: 4-20mA-4-wire, Output Signal: RS485
MODBUS,
Max permissible operating overpressure: 50barg
incl. desiccant sleeve Measuring chamber MK-Basic-
PN16
Calibration set lithium chloride 11,3%r for PDP,
(HS-Code) Zolltarif-Nr.: 90318020
BEKO Technologies GmbH – Made in Germany
