FA 510/515 for residual moisture measurement in compressed air and gases

FA 515 dew point sensor for
desiccant driers
1.427,00
4…20 mA output signal (2-wire connection)
or Modbus-RTU interface
calibration certificate included

Typical applications:
• Dew point measurement in the compressed
air after adsorption dryer, membrane dryer,
refrigeration dryer
• Residual moisture/dew point measurement in
gases such as oxygen, nitrogen, argon…
• Residual moisture/dew point measurement
after granulate dryers in the plastics industry

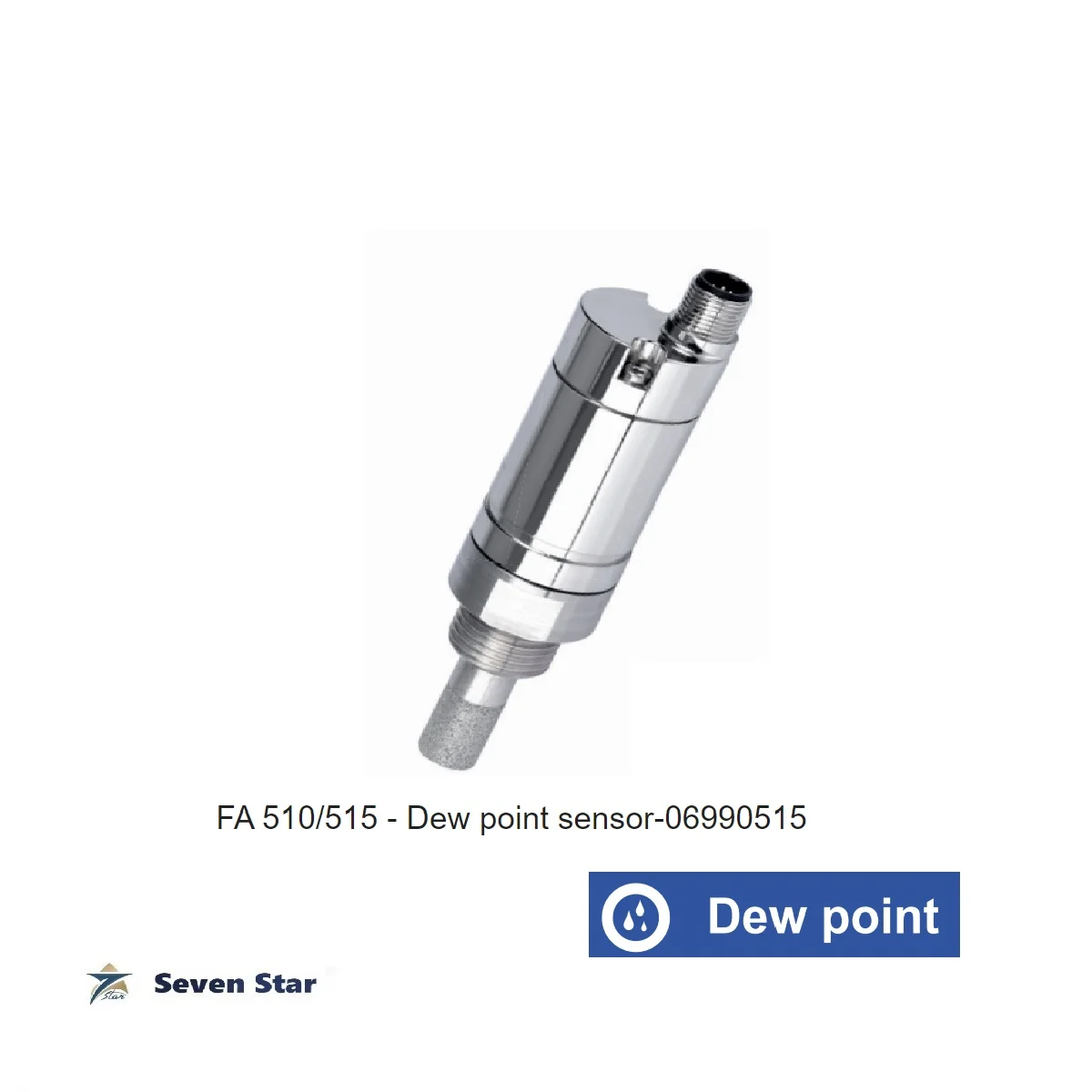

FA 510/515 – Dew point sensor-06990515

Special features:
• Extremely stable in the long term
• Analog output 4…20 mA for dew point
• Condensation-resistant
• Quick adaption time
• Pressure-tight up to 350 bar (special
version)
• NEW: Modbus-RTU interface
• NEW: Higher resolution of sensor signal
due to the improved evaluation electronics
• NEW: Sensor diagnosis on site with a portable device or CS Service Software
• Readable via Modbus:
– Pressure dew point [°Ctd.]
– Temperature [°C]
– rel. humidity [% RH]
– abs. humidity [g/m³]
– Degree of humidity [g/kg]
– Moisture content V/V [ppmV/V]
– Partial vapour pressure [hPa]
– Atmospheric dew point [°Ctd.atm]
