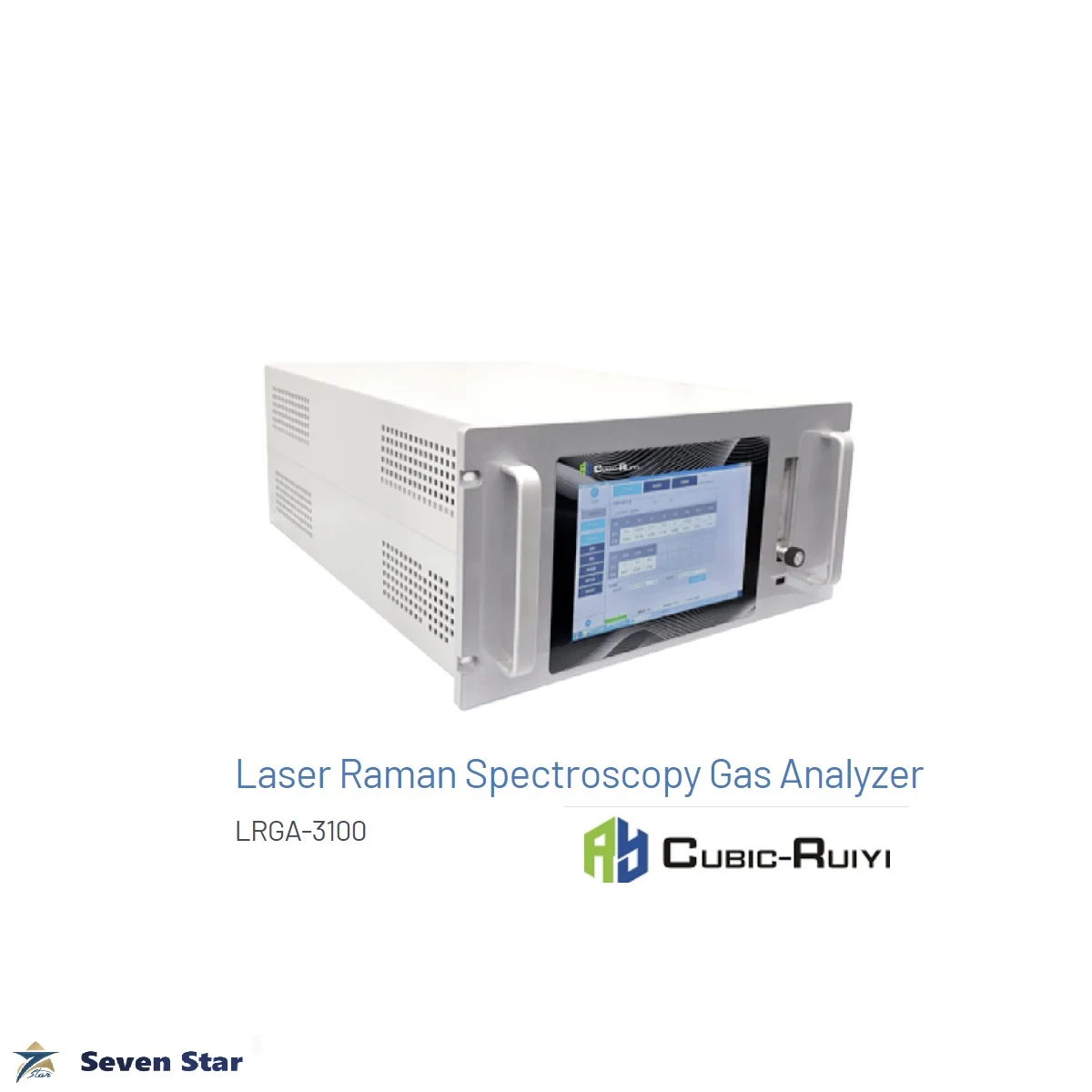

CUBIC-Laser Raman Spectroscopy Gas Analyzer LRGA-3100

LRGA-3100

LRGA-3100 Laser Raman Spectroscopy gas analyzer is independently researched and developed by Cubic Instruments (a wholly-owned subsidiary of CUBIC Sensor and Instrument Co., Ltd). Based on the LRGA-6000–a special product for the development of national significant scientific instruments and equipment, the optical path and structure were optimized to greatly reduce the size of the gas analyzer, so the new generation laser raman gas analyzer is much more compact and transportable. Based on the principle of laser Raman scattering, which enhances, collects, processes and identifies the characteristic Raman scattering spectra of the gas to be measured and quantifies the content, LRGA-3100 can provide online real time measurement for various gases simultaneously with the shortest response time in seconds.

Applications

• Natural Gas
• Natural gas cracking
• Shale gas
• Mud logging
• Petrochemical
• Coal chemical industry
• Coal to Glycol
• Raw coal gas
• Inlet of pretreatment
• Conversion gas composition
• Ferrous Metallurgy

• Argon blowing in steel ladle

• Mixed gas of Blast Furnace, Coke Furnace and Converter Furnace

• Coke oven gas
• Heating furnace calorific value monitoring
• Coking
• Biomass Gasification
• Tire cracking
• Pyrolysis/gasification
• Rubber gasifier
• Gasification reactor

Features

Online real time measurement with wide detection range from 0.1 and 100%.
One instrument can provide gas monitoring for whole industrial process gases.
No carrier gas and calibration gas are required with low operating cost.
Use the baseline-separated peaks to analyze different components which is similar to chromatogram analysis.
Capable of mounting online in harsh process conditions of high temperature and high pressure with proper gas conditioning system.
Online measure multi-components gas, including N2, O2, H2, CL2, CH4, C2H6, C3H8, H2S etc., with the shortest response time in seconds.

Specifications

Measurement Components	H2, N2, O2, CO, CO2, CH4, C2H2, C2H4, C2H6, C3H6, C3H8, H2S etc
Measurement Range	0-100% （can be customized based on actual application condition）
Accuracy	≤±2%F.S.
Response Time	100s
Repeatability	2%
Temperature	10℃～35℃
Power Supply	AC 220V/50Hz
External Interface	USB，RS 232
Dimension	L590W480H177(mm)
