315-4NE23 : YASKAWA VIPA CONTROLS
SKU : 100-221-380

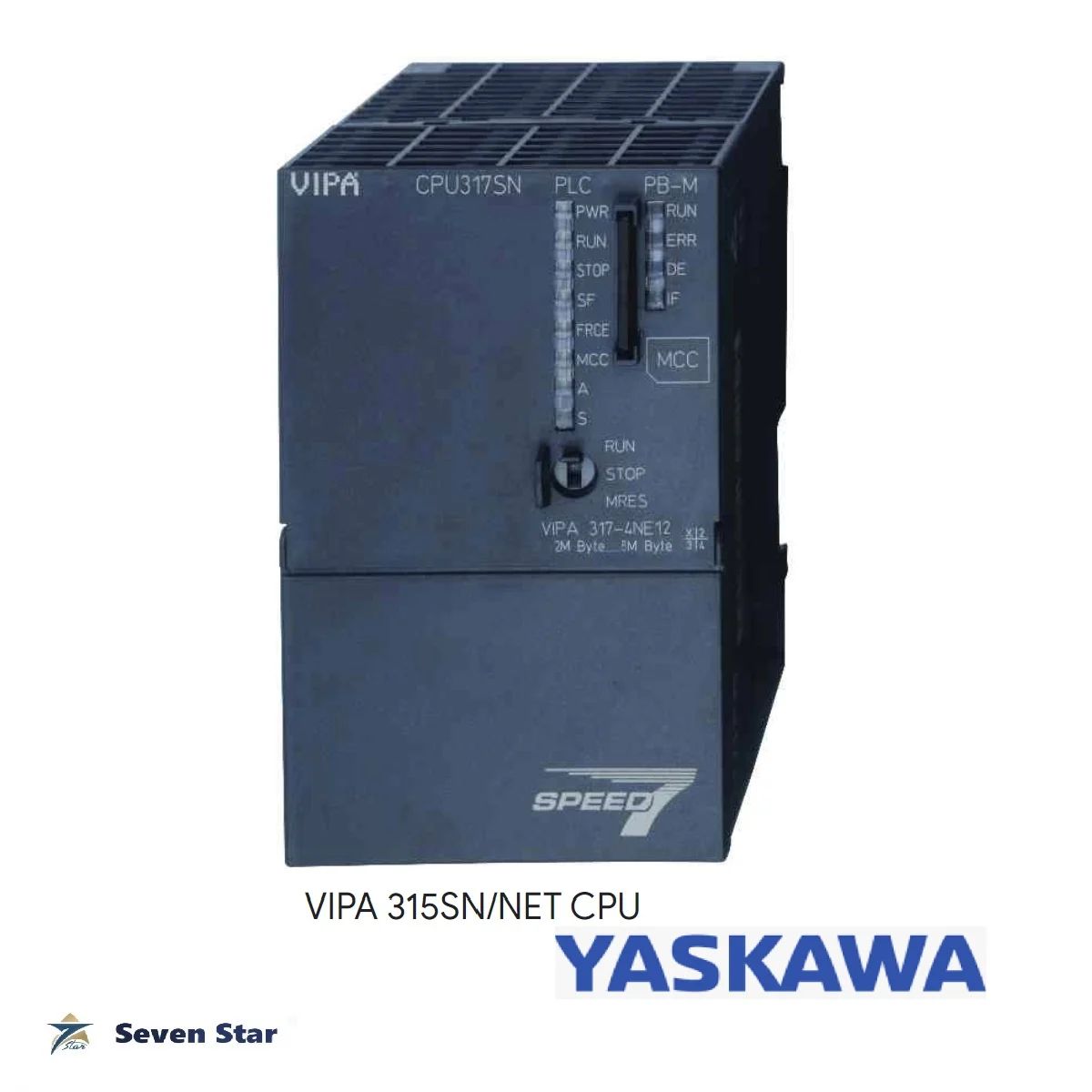

YASKAWA VIPA CONTROLS CPU 315SN
/NET – SPEED7 technology SPEED7
technology, 1 MB work memory, Memory
extension (max. 4 MB), PROFIBUS-DP
master / PtP (switchable), CP 343 integrated,
Also configurable via TIA-Portal, Made in
Czech Republic, HS Code: 85371091

Powered by SPEED7
Work memory [KB]: 1.024…4.096
Integrated Ethernet CP343-Lean
Interface [RJ45]: Ethernet PG/OP communication
Interface [RJ45]: active Ethernet CP343 & PG/OP-communication
Interface [RS485]: MPI
Interface [RS485]: PROFIBUS master/slave, PtP: ASCII, STX/ETX, 3964(R), USS master, Modbus master/slave
SD/MMC card slot with locking, up to 32 modules stackable, programmable with WinPLC7, SIMATIC Manager and TIA Portal

Characteristics

– High-speed control system with SPEED7 technology
– Command processing times of 0.01µs
– Programmable with WinPLC7 respectively STEP7 or TIA from Siemens
– Integrated accumulator-backed work memory flexibly expandable by means of MCC memory expansion card
(depending on CPU up to 8 MB)
– Operation without additional memory card possible
– Support of MMC and SD cards (up to 2 GB) for automatic/manual backup of the program and reading and writing of data
– SPEED-Bus for extension with high-speed signal modules and communication processors (CPU 314ST, 317SE, 317SN ans 317PN)
– Ethernet, PROFIBUS-DP and MPI interfaces on board
– PROFIBUS-DP master/DP slave or PtP (switchable)
– PROFINET IO Controller according to Conformance Class A with integrated Ethernet CP (CPU 315PN and 317PN)
– Centralized and decentralized use and modular extendable
– Integrated real-time clock and front-integrated status LEDs
– 36 month warranty
